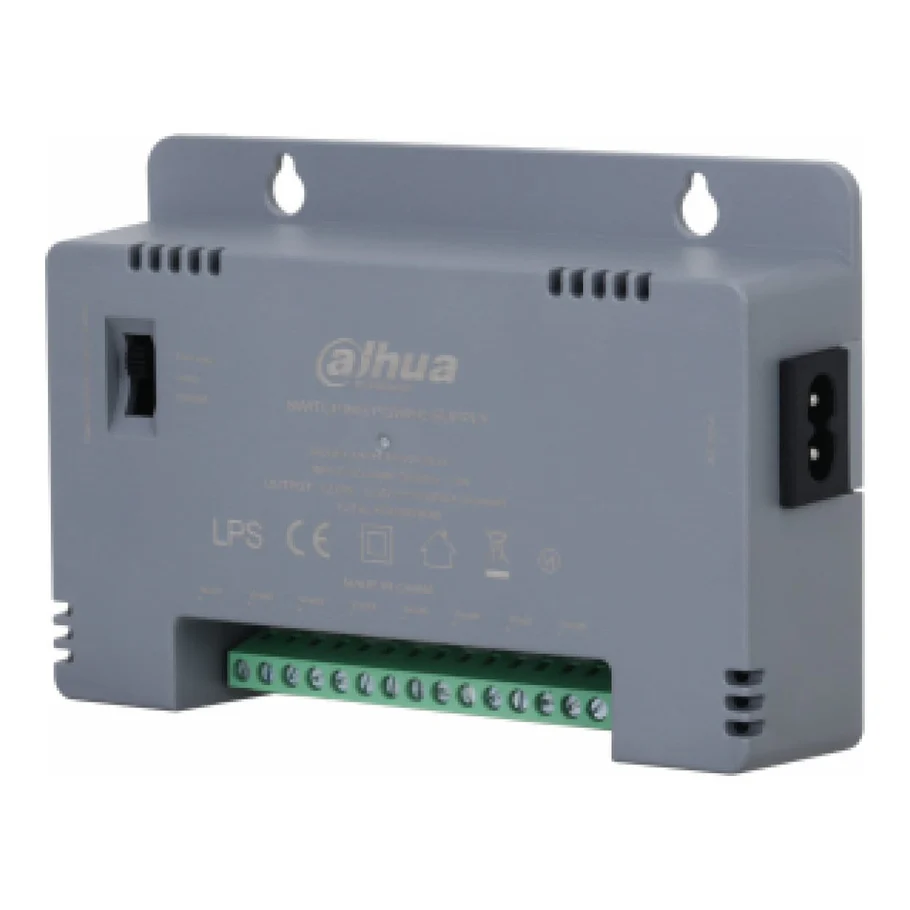

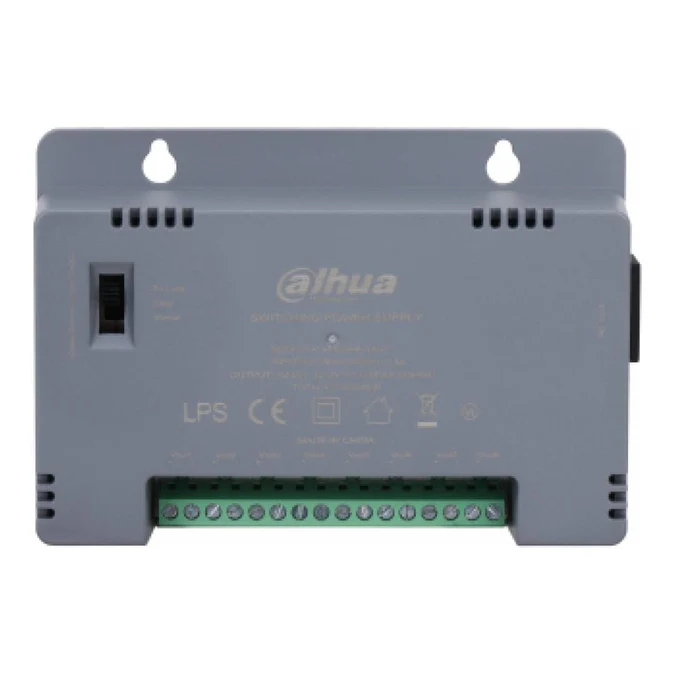

Dahua PFM344D-8CH-EN-V2 Switching Power Supply

Dahua PFM344D-8CH-EN-V2 Switching Power Supply

Features:

• Outputs through 8 channels and can supply to multiple devices at the same time
• The output voltage can be adjusted to 3 levels, making it easily adapt to various types of devices
• Easy to install, the device supports wall mount installation
• Designed with protection against overcurrent, overvoltage, and short circuits
• Surge protection: common mode: ±4 kV, differential mode: ±2 kV
• V-0 fireproof
• CE certification
• Efficiency Level: VI

Specifications:

Input Voltage: 185 VAC–240 VAC

Output Voltage:

• Normal: 12 VDC
• Long: 13.5 VDC
• Ex-Long: 15 VDC

Rated Output Current

• Normal: 5 A
• Long: 4.5 A
• Ex-Long: 4 A

Rated Power:

• Output power: 12 W (for one channel)
• Total power: 60 W

Power Consumption: In Idle ≤0.21 W

Efficiency: ≥87%

Input Port: 2-core female seat C8, with European standard cable

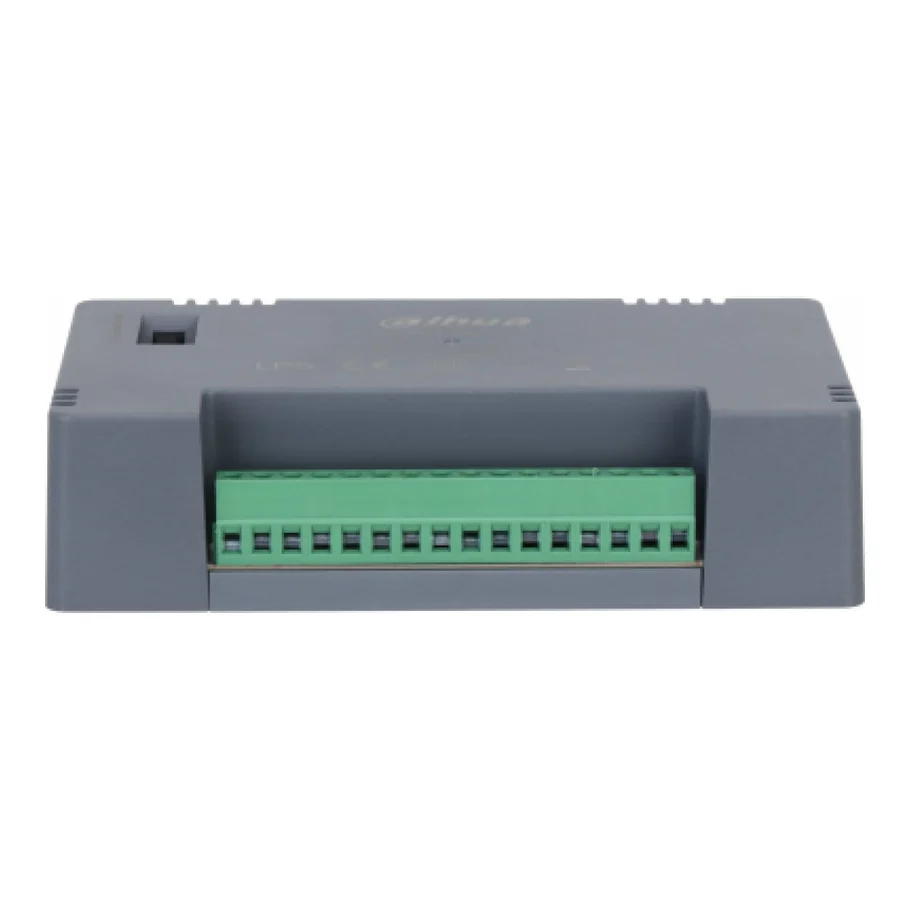

Output Plug: 8 channel output terminal

Protection: Overcurrent protection, overvoltage protection andshort circuit protection

Surge Protection Grade:

• Common mode: ±4 kV
• Differential mode: ±2 kV

Statics Protection:

• Air discharge: ±8 kV
• Contact discharge: ±6 kV
